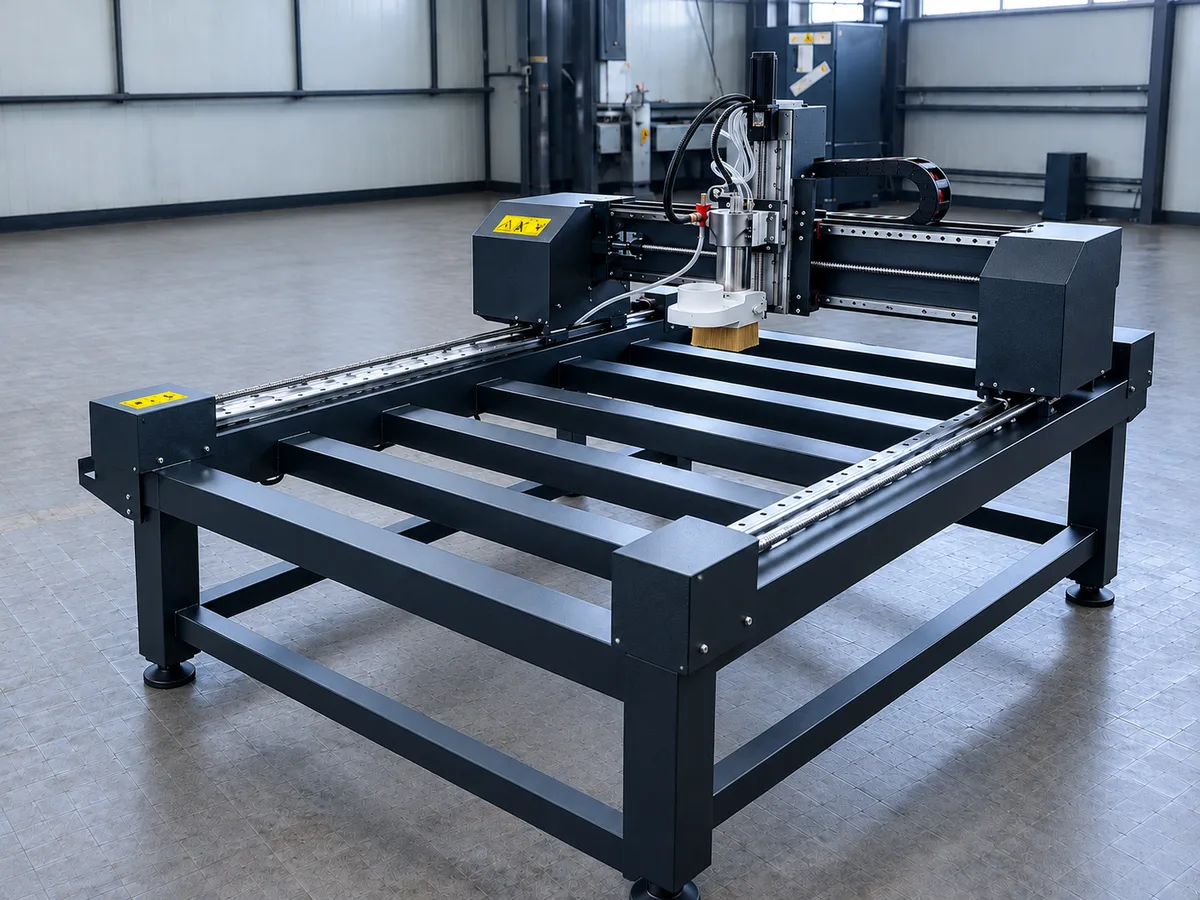

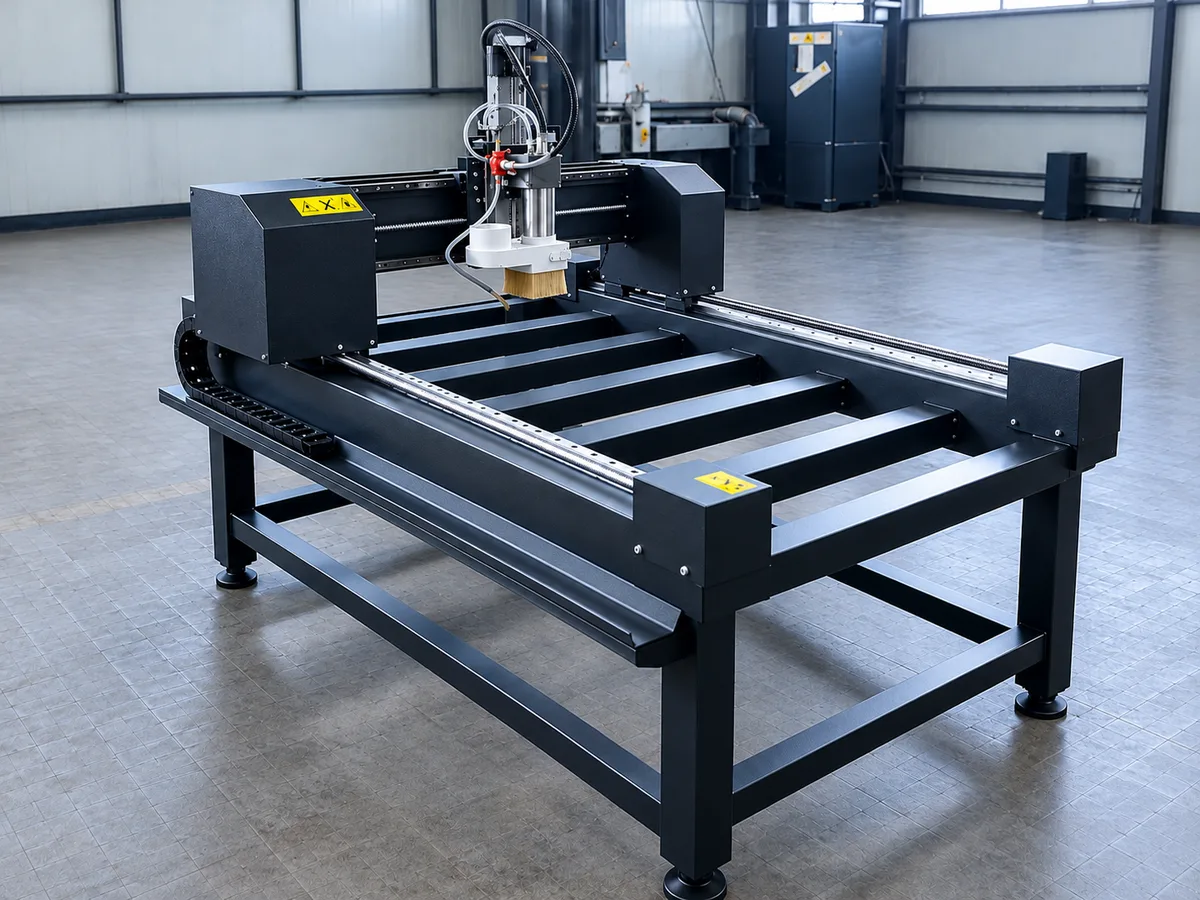

FD-1290 technical specification
Specifications
- Working area
- At least 1200 × 900 × 150 mm.
- Drive type, all three axes
- X and Y axes: precision ball screw 2005; Z axis: precision ball screw 1204 (accuracy class C5)
- Linear guides
- All three axes X, Y, Z: precision square profile rails HG20 (20 mm wide; stiffer and more durable than round SBR rails over long travel)
- Positioning accuracy
- 0.05 mm (high accuracy for woodworking)
- Maximum rapid traverse speed
- 4,000 mm/min
- Acceleration
- Up to 1.5 m/s²
- Table surface
- aluminium profile with T-slots for hold-down clamps
- Workpiece clamping
- T-slots
- Motion system, all three axes
- High-precision stepper motors
- Supply voltage
- 220 V
- Spindle power
- 1.5 kW
- Spindle cooling
- Liquid (water) cooling in a closed loop.
- Starter cutter set included
- Cutters for plywood (corn-cob type), compression cutters (clean cut), tapered cutters for 3D wood engraving, a set of precision ER20 collets
- Maximum table load, with height-adjustable feet.
- 150 kg
- Protection and dust extraction
- Spindle guard with a dense nylon brush for a chip extraction system
- Inectra control module
- The module provides gantry squaring and inputs for limit sensors. Limit sensors are included in the delivery.
- Machine weight
- 270 kg
Other FD series models
If the working area is not enough or you need a margin, compare with the neighbouring models.
- FD-2015Working area: 2000 × 1500 × 200 mmOpen FD-2015
- FD-3020Working area: 3000 × 2000 × 200 mmOpen FD-3020
